Produktdetails

Features

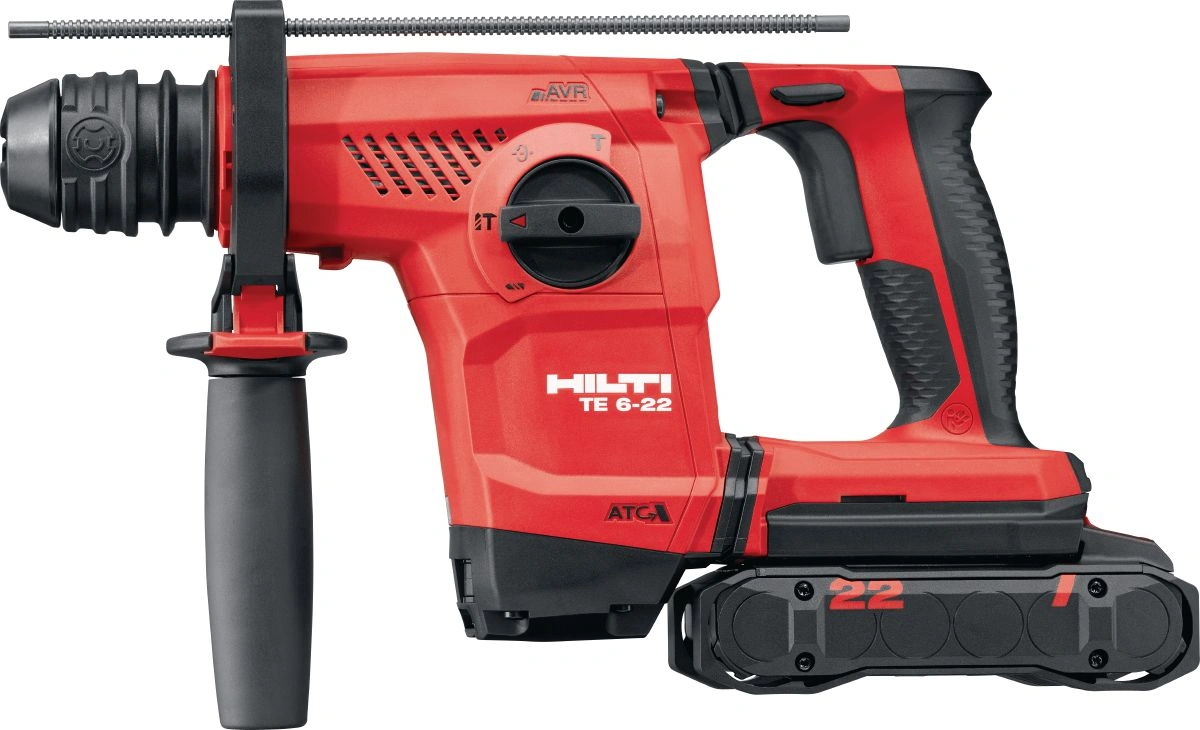

• Performance, versatility and ergonomics in one – the TE 6-22 cordless rotary hammer has a wide drilling range, chiseling function and more comfort for all-day use

• Helps reduce fatigue – now even lighter, helping you power through larger concrete drilling jobs

• Improved handling – better tool balance and contoured grips so you can drill, chip or drive more comfortably in any position

• Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks

• Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

• Drilling and hammer drilling in concrete and masonry

• Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

• Light-duty chiseling – such as tile scraping, channel cleaning or surface correction

• Occasional drilling in wood and steel (with optional quick-release chuck)

• Setting anchors and drop-in anchors (with optional TE-C bit holder)

Technical Data

• Weight according EPTA-Procedure 01/2003 without battery: 6.3 lb
• Optimum Hammer drilling range: 1/4 - 23/32 in
• Hammer drilling diameter range: 5/32 - 1-3/32 in
• Single impact energy: 1.9 ft-lbf
• Hammer drilling RPM: 1050 rpm
• Full hammering frequency: 5100 impacts/minute
• Functionality: Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch
• Triaxial vibration for chiseling into concrete: 5.5 m/s²
• A-weighted emission sound power level: 102 dB (A)
• Dust removal system available: TE DRS-4/6, TE DRS-C, TE DRS-D

Documents

• Material Safety Datasheet
• Operating Instructions
